Stone crusher is equipment that is used to reduce the size of large rocks or gravel, suitable for construction purposes such as stone, gravel… It is widely used in construction sites, roads, highways, industrial parks, and factories.

Stone crusher is heavy industrial equipment manufactured by specialists in research and development in this field. With the large size, high capacity operation, simple to complex structure, suitable for different types of materials to be crushed.

Types of construction stone crushers

Jaw Crusher

Jaw crusher is used to reduce the size of the input materials, crushing the rubble stone into smaller-sized stones as raw materials for applications in construction or secondary crushers in the line stone crusher line. Jaw crushers usually have a V-shaped inlet, which makes the crushing efficiency higher. Now, this product has become the main choice in various kinds of stone crushing equipment. The machine is widely used in many industries such as mining, metallurgy, building material, railway, irrigation, chemical,…

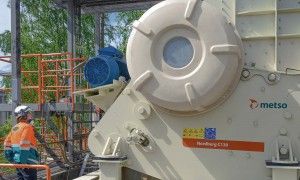

*Metso Nordberg® C Series™* *jaw crusher*

Currently, jaw crushers originating from China are often used in Vietnam because of their low cost, quick supply, easy replacement and maintenance, but the machine performance is not high. Some manufacturers of crushers with advanced technology in the world can be mentioned such as Metso - Finland, Sandvik - Sweden, Otsuka - Japan, Terex - USA, and Keosan - Korea for productivity and efficiency. High, compact machine structure, especially suitable for high hardness input materials.

Metso Nordberg® C Series jaw crusher is used as primary crushers in aggregate production, mining operations and recycling applications. With compact structure, small crushing angle and wide crushing cavity, it increases crushing efficiency and allows the machine to consume less fuel than similar products.

Cone crusher

The cone crusher is a mineral crushing equipment that operates on the principle of crushing between the upper and lower cones through local volume changes in each area of the crushing cavity. The material is pressed to break down gradually from top to bottom along the vertical section of the crushing chamber until it is small enough to fall through the discharge slot to be taken to the next processing stages. The cone crusher is often applied as a 2nd stage crusher, behind the jaw crusher, even as a 3rd stage crusher, to process minerals or materials with strong hardness, high abrasiveness. It has the advantages of stability, reliability, high productivity, easy adjustment and lower operating cost.

*Metso* *Nordberg® GP* *Series™* *and* *Nordberg® HP Series™* *cone crusher*

Currently, Metso's GP and HP cone crushers are the most trusted cone crushers due to advantages such as compact structure, flexible steep angle and large cone height with using two separate clamping force systems allows the machine to operate with great productivity and crushing efficiency. The IC70C and IC50C automatic control systems allow the operator to control the operation of the machine efficiently and safely. The size and weight of the machine are also smaller than similar products.

Impact Crusher

The impact crusher is used as a fine crusher, operating on the principle of a rotating rotor that strikes the material to be crushed into the crushing cavity. Depending on the intended use, the impact crusher can also be used as a coarse crusher. Products are widely used in industries such as traffic construction, building materials, and others. The impact crusher has high efficiency in operation, large capacity, high crushing ratio, and is easy to operate and maintain.

*Metso Nordberg® NP Series™* *impact crusher*

NP Series impact crusher has been designed to minimize maintenance and repair, it is suitable for recycling and crushing applications at all stages from primary to final crushing. The crushing chamber, wear material and rotor are designed to withstand high loads which improves product quality, reduces consumables and lower product costs. The new IC2000 automation control system maximizes efficiency and comes with configuration options for customers to choose from such as:

Fully hydraulic breaker plate adjustment setting to reduce downtime
Third breaker plate to control the top product size in open circuit
Different grades of steel and cast iron and the possibility for ceramic insert for blow bars to decrease the wear cost.

The Nordberg® NP Series impact crusher is a reliable choice for the majority of customers.

VSI Crusher

VSI crusher is a type of crusher usually placed at the end of the stone crusher line with the function of rounding the stones, reducing the flatness according to the customer's requirements. In addition, when increasing the rotational speed of the rotor, the sand generation rate will increase, so it is also used for the main purpose of producing artificial sand.

Metso's Barmac VSI sand mill with outstanding technology is a product trusted and widely used by customers. With the unique CASCADE-type (side-loading) inlet design, it increases the ability to feed materials into the crusher, increases the capacity of material feeding into the crusher, thereby increasing productivity by up to 10% while the power consumption remains unchanged, reducing the cost of consumables, thereby reducing product cost. Compact structure, high productivity, easy to install, suitable for both stationary and mobile crushing stations. The IC3 system is equipped to ensure efficiency as well as stability, maximizing productivity. With outstanding features, Barmac VSI is widely used in artificial stone quarries in Vietnam and around the world.

Why Phu Thai Cat is a good choice for being the best crusher provider for your organization?

Phu Thai Cat is the official distributor for Metso Outotec in Vietnam from September 2021. Its comprehensive portfolio covers crushers, screens, feeders, track-mounted and wheel-mounted units, stationary plants and related automation solutions. Phu Thai Cat also provides original parts and after-sales service.

Along with Caterpillar’s equipment for digging, shoveling, and ironing..., which is distributed by Phu Thai Cat, will provide customers with all kinds of equipment they need for their production lines. Customers can rest assured with reputable and responsible Phu Thai Cat's services.

Phu Thai Cat's after-sales service will help customers maintain, optimize performance and productivity, and reduce operating costs for equipment. with a team of skilled and professionally trained technicians of Phu Thai Cat, customers can completely rest assured!
